Introduction

PDB-Explorer is a web application for the interactive visualization of chemical space of RCSB Protein Data Bank (PDB) characterized by protein shape fingerprint (3DP) and shape similarity search for molecules in PDB. The chemical space herein represented as 3DP PCA maps. PDB-Explorer contains X-ray structures from PDB, which is updated daily with the latest PDB additions, ensuring up-to-date coverage.

Molecules in PDB-Explorer

The X-ray molecules in the application are biological assemblies defined by author. The application provides ribbon images of these molecules using PYMOL. The user can further observe 3D model of molecules by PV viewer or JSMOL visualization window. The molecule presented in PV/JSMOL is cartoon mode, while user can change the representation scheme using the options on right side. In the case of PDB entries with no secondary structures or containing only alpha carbons, the program generated empty images (e.g. PDB ID 1O55 and 1IVI). These structures cannot be displayed by PV or JSmol with default cartoon mode. To observe the structures, one can change the display mode of PV as lines. The JSmol viewer sometimes can detect the secondary structure for the PDB entries that only contain alpha carbons.

Protein Shape Fingerprint(3DP)

The 3DP fingerprint perceives the spatial distribution of shape, hydrophobicity and charges in molecular objects across a very broad size range. To know more about 3DP please visit the reference section.

3DP PCA Maps

It is the representation of PC planes (PC1-PC2 or PC2-PC3 or PC1-PC3) obtained after Principal component analysis of the 200-dimensional 3DP-similarity space for PDB dataset. All the maps have been produced on a grid of size 300x300. Each of the map color coded separately using different properties:

Average heavy atom count of molecules at given point on the map(Heavy atom count).
Average percentage of hydrophobic atom count of molecules at given point on the map(% Hydrophobic Charge Atom).
Average percentage of negative charge atom count of molecules at given point on the map.(% Negative Charge Atom).
Average percentage of positive charge atom count of molecules at given point on the map.(% Positive Charge Atom).
Average molecular volume occupancy (mvo, ų/atom) of molecules at given point on the map, a property defined here as the volume of the sphere with a radius corresponding to the average distance of all atoms to the center of gravity, divided by the total number of atoms (Molecular Volume Occupancy).
Average normalized PMI value of molecules at given point on the map(nPMI).
Number of molecules occupying given point on the map(Occupancy).

One such map (representation of PC1-PC2 plane) for PDB which is color coded according to heavy atom count property is shown below.

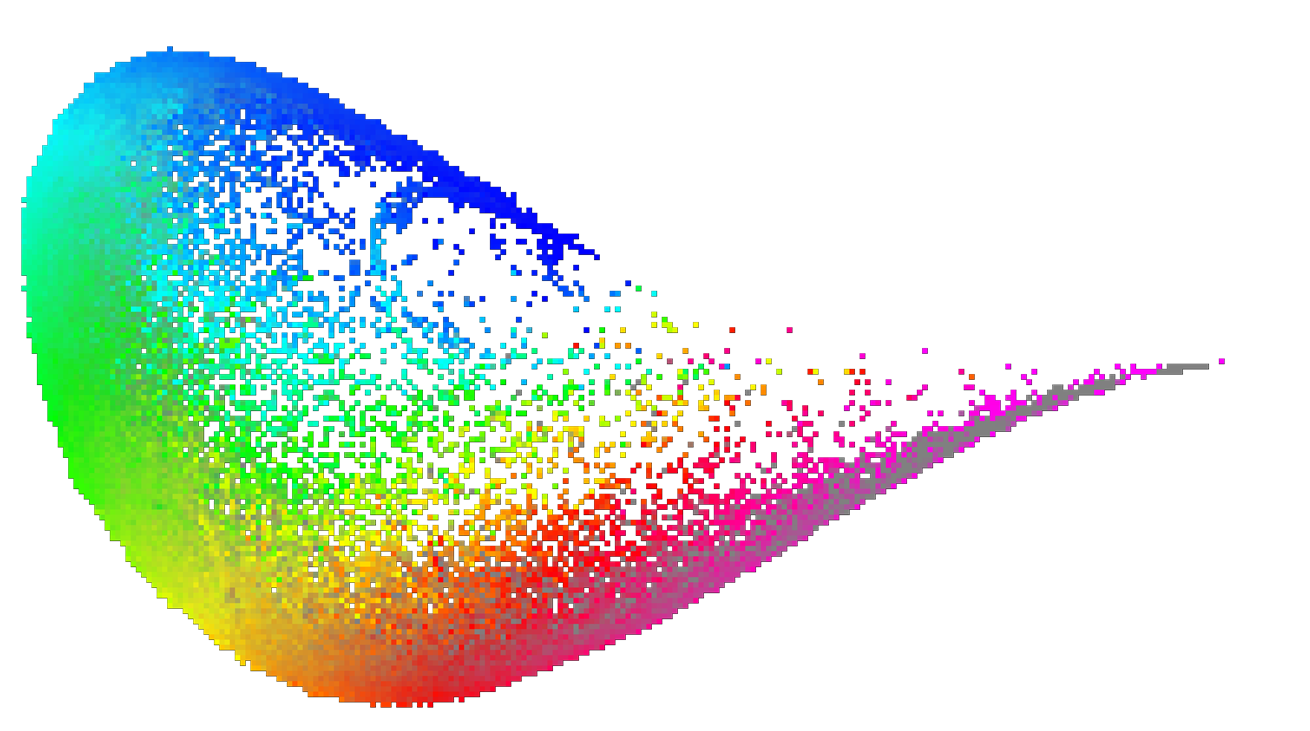

Figure 1: 3DP PCA map for PDB color coded by Heavy Atom Count property

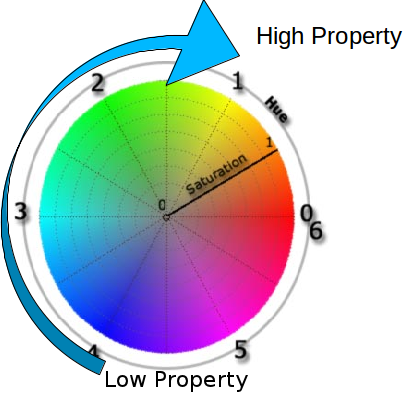

Figure 2: HSL color space

Functionalities in PDB-Explorer

Choose the Map (Select image):

For the list of available maps can be obtained by clicking on the Map "combo box". By default the "Heavy atom count" map is display. All the maps are of size 300x300 pixels.

Mouse Move:

Moving the mouse over the map will show the following information:

Name: The PDB code of average molecule at the given point on the map

Position: The XY coordinates for the mouse cursor position on the map

Molecule Image: Displays ribbon structure image of average molecule at the given point on the map

Average: Displays the "average property" at the given point on the map

Deviation: Displays the standard deviation of "average property" at the given point on the map

Mouse Wheel Motion:

Moving the mouse wheel in forward direction will zoom into the map. While moving the mouse wheel in backward direction will zoom out of the map.

Mouse Double click:

Double clicking at any given point on the map will provide full view of the map.

Mouse Dragging:

Mouse Dragging will help to move the map in display area.

Mouse Single Click:

Single clicking on one pixel of the map (red droplet) will display the PDB entries occupying the given point and show their cartoon images in the table of protein list.

Protein List: The molecules in the given point of map are displayed in the order of PC3 values. "Jsmol" option is available to look 3D structure of selected molecule with JSMOL. "pdb.org" option will allow you to link the selected molecule to parent PDB database to look for detail information. Clicking on one table cell of protein list can do furthur shape similarity search by displaying select PDB code in the "Sort by similarity" box automatically.

Download Zip: Clicking on this option will allow you to save file containing 3D coordinates for all the molecules occupying the given point on the map.

Drop your PDB file here:

User can upload their molecule in standard PDB format to observe its position on the map (black droplet) and to search similar molecules from PDB database. The application only considers atoms assigned as "ATOM" in PDB file. Therefore, the the non-standard residues or organic molecules which are considered as part of molecular shape, should be written as "ATOM" instead of "HETATM". One can click the "Drop your pdb file" box, and upload pdb. The similar molecules from PDB database based on default search condition (Max Count:100; Max Distance:10000) can be showed in the table of protein list by the ranking automatically.

Lookup a list of PDBs:

This option allows the users to locate one or more molecules of their interest on the map (yellow droplets).

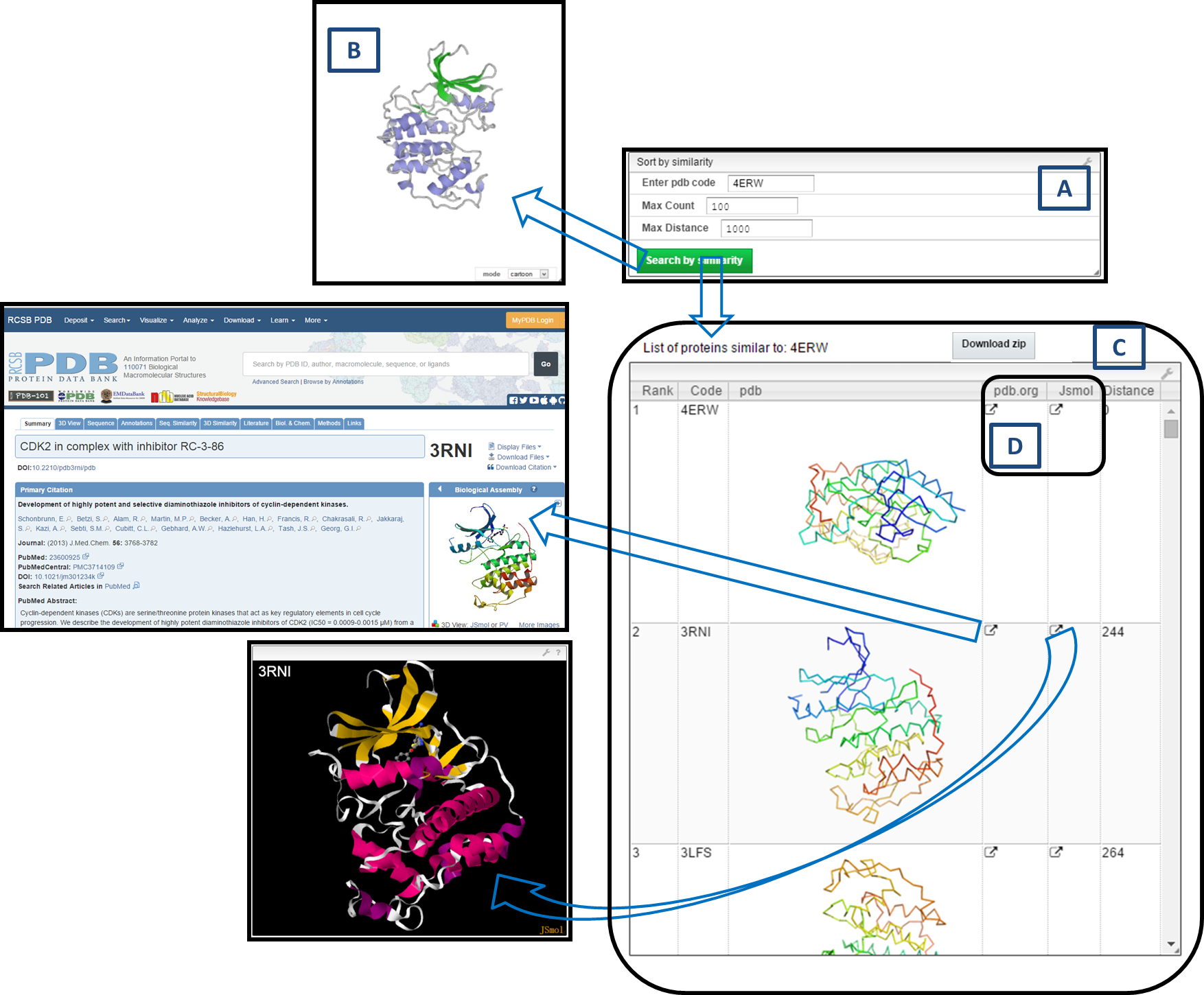

Sort by similarity:

Search similar molecules for query PDB entry based on CBD value from 3DP. Enter a valid PDB code and select the search condition. "Max Count" will search for specified number of molecules from database which are most similar to input query molecule. "Max Distance" will search for similar molecules from database which are having distance less than or equal to distance specified by user with respect to query molecule. Click "search by similarity" button and the result will be displayed in the table below by the ranking. One can observe the position of query molecule on the map with blue color droplet.

HELP:

Open the Help document in Browser.

Example with PDB code 4ERW

Example is shown to observe molecule (4ERW) on the map and use it for similarity searching. 4ERW is Cyclin-dependent kinase 2.

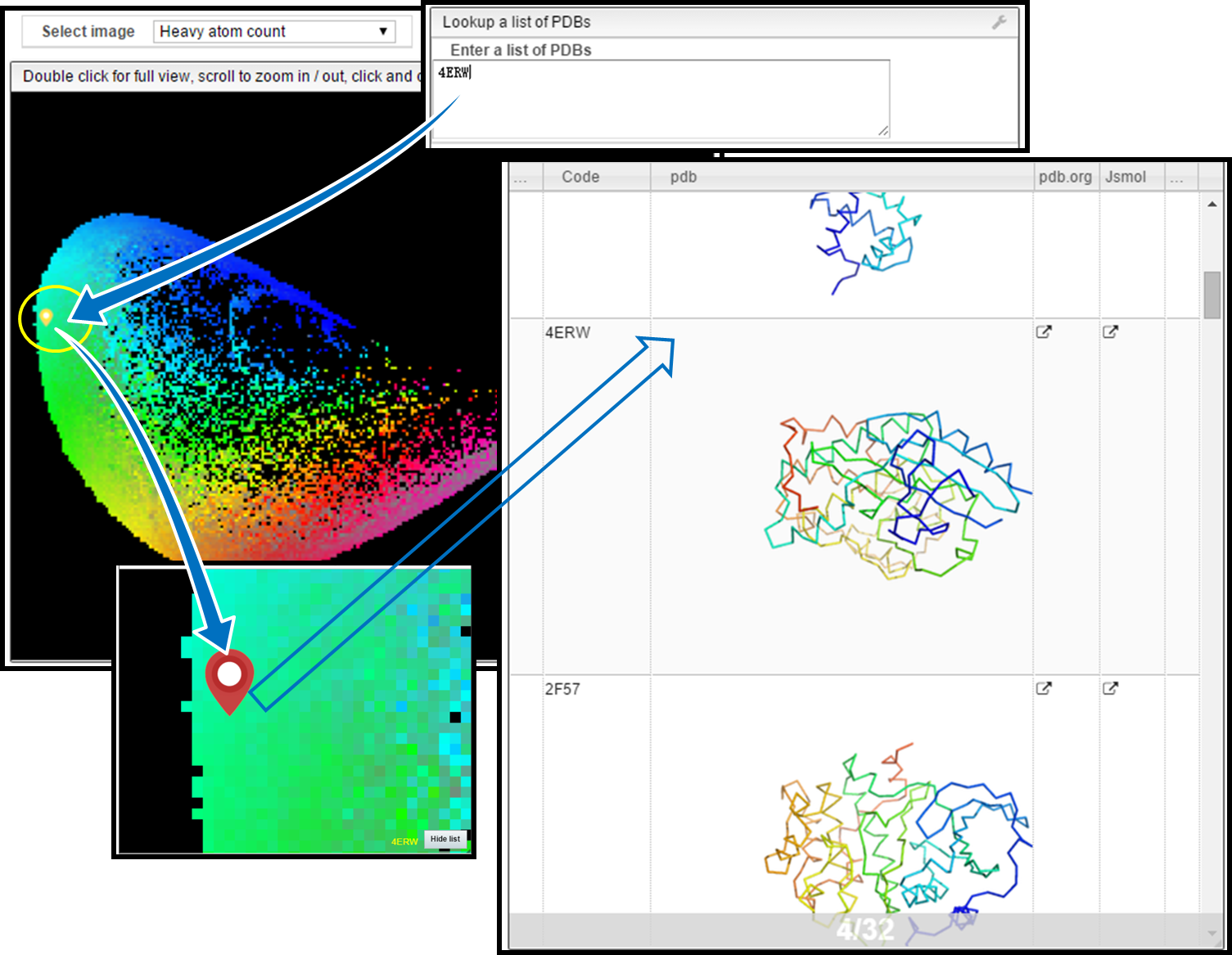

1) Locate Molecule

Write down the PDB ID in the provided text field of "Lookup a list of PDBs to observe the position of 4ERW on different maps (yellow droplet).

2) Show Molecules in the Same Pixel

Single clicking the yellow marked pixel on the map allows you to look the molecules occupying the same point with 4ERW on the map (red droplet). In this expample, 32 molecules are in the same pixel with 4ERW.

Supported Browsers and Technical Support

The application works best in Chrome. Supported browsers: Chrome (v42), Firefox (v36), Safari 9 (preview).
Safari 8, Internet explorer and Edge are not yet supported. For any suggestions and questions regarding application please free to contact us at: xian.jin@dcb.unibe.ch
